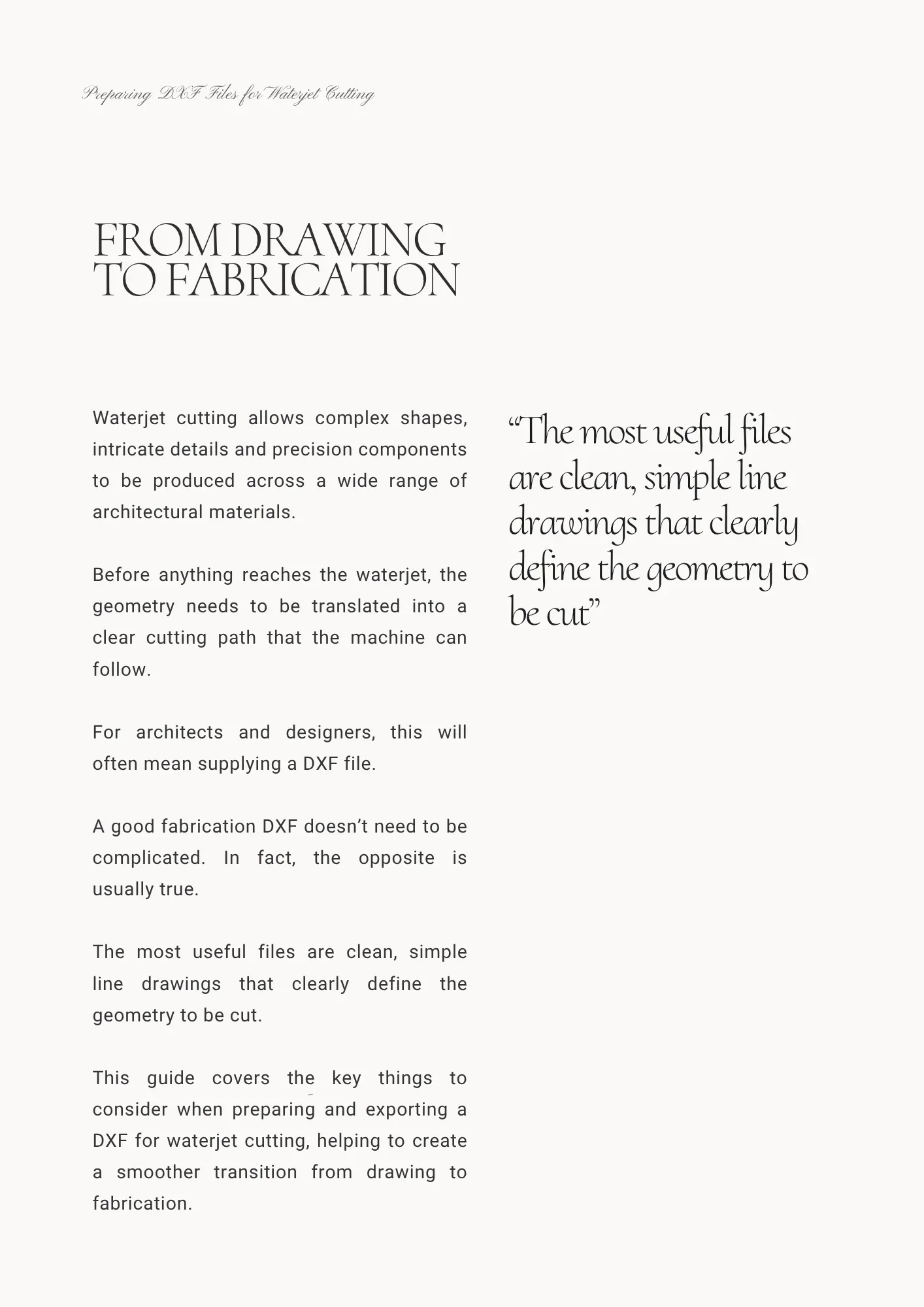

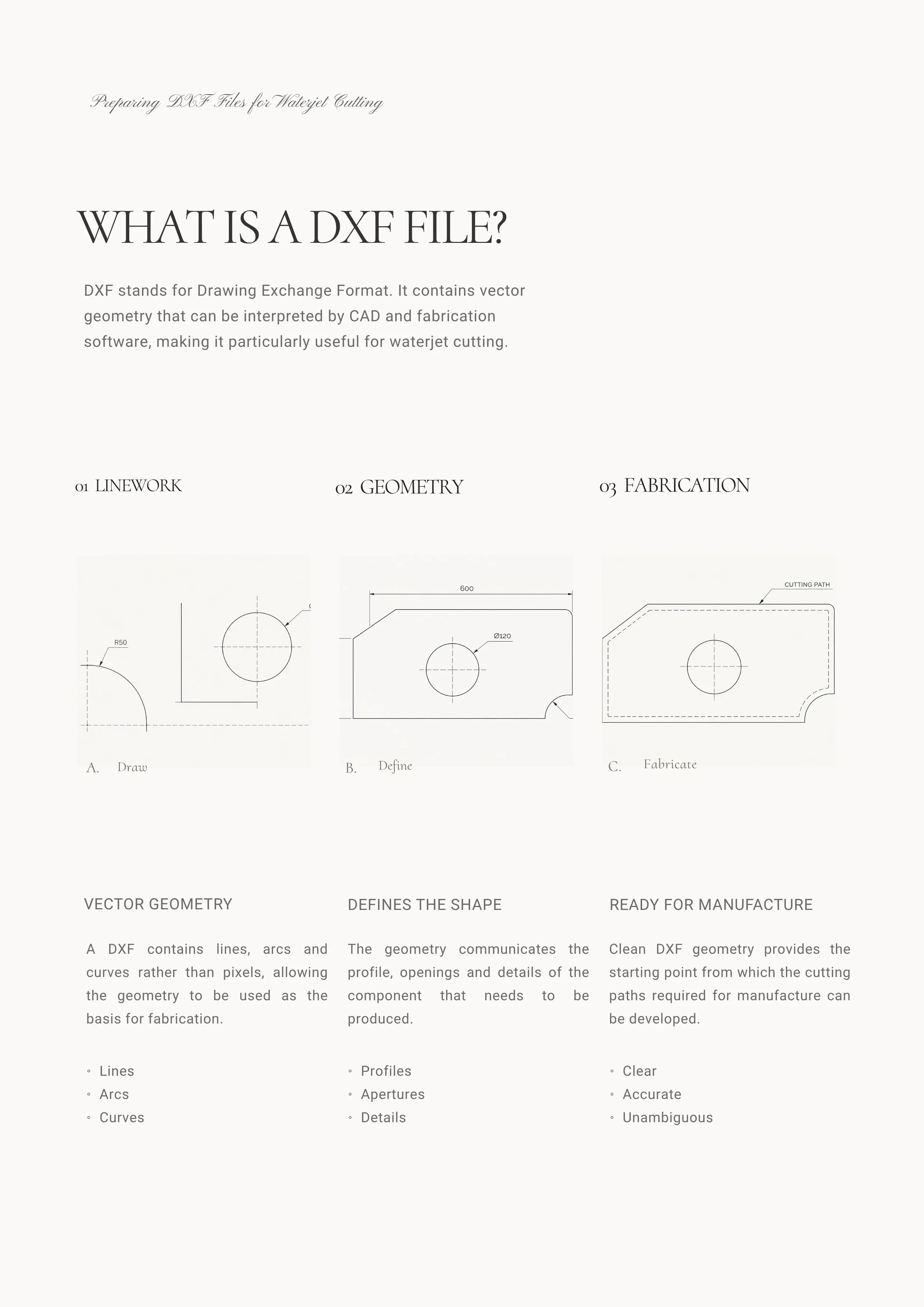

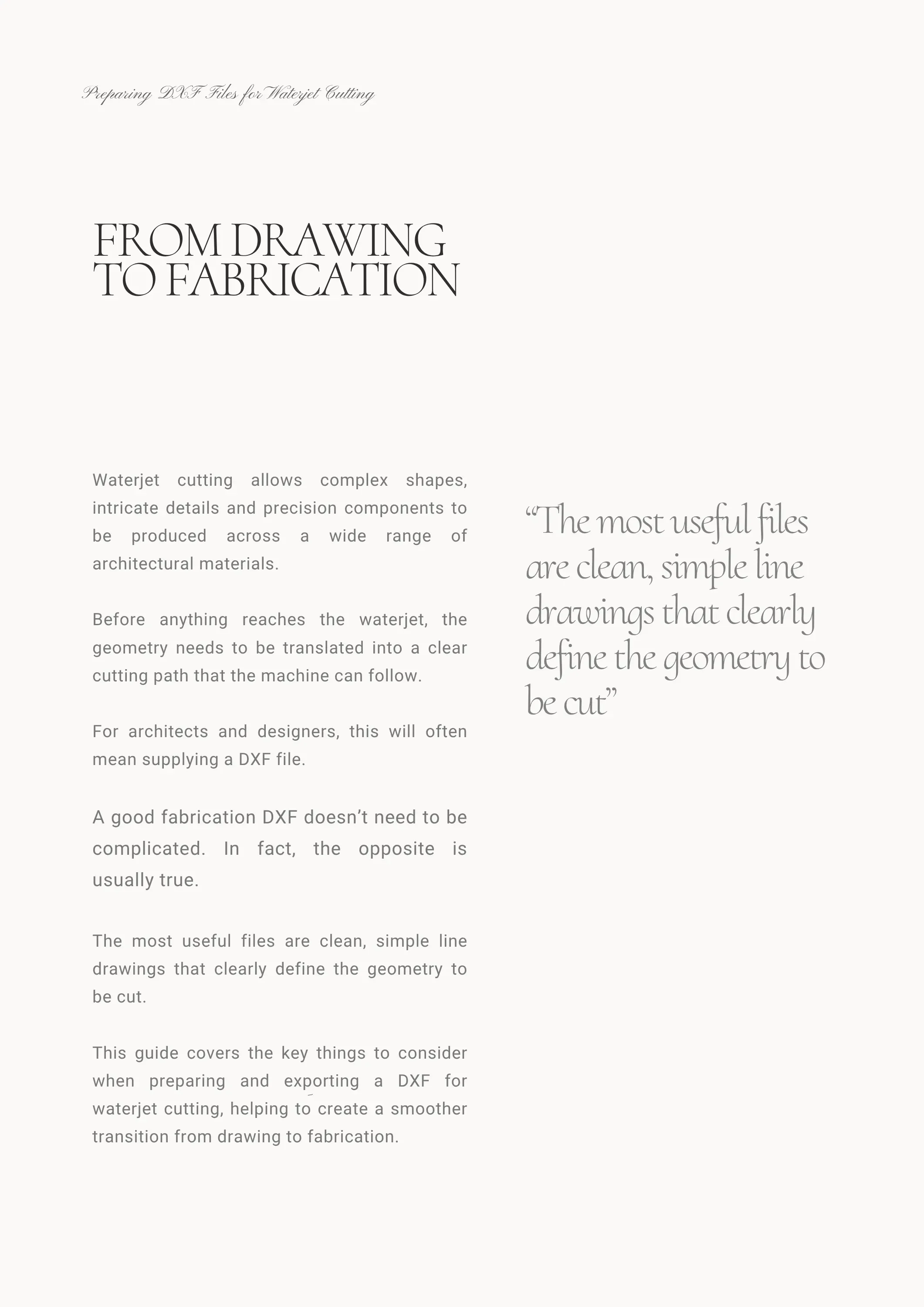

Preparing a DXF for waterjet cutting doesn’t need to be complicated. The most useful files are clean, simple line drawings that clearly communicate the geometry to be cut.

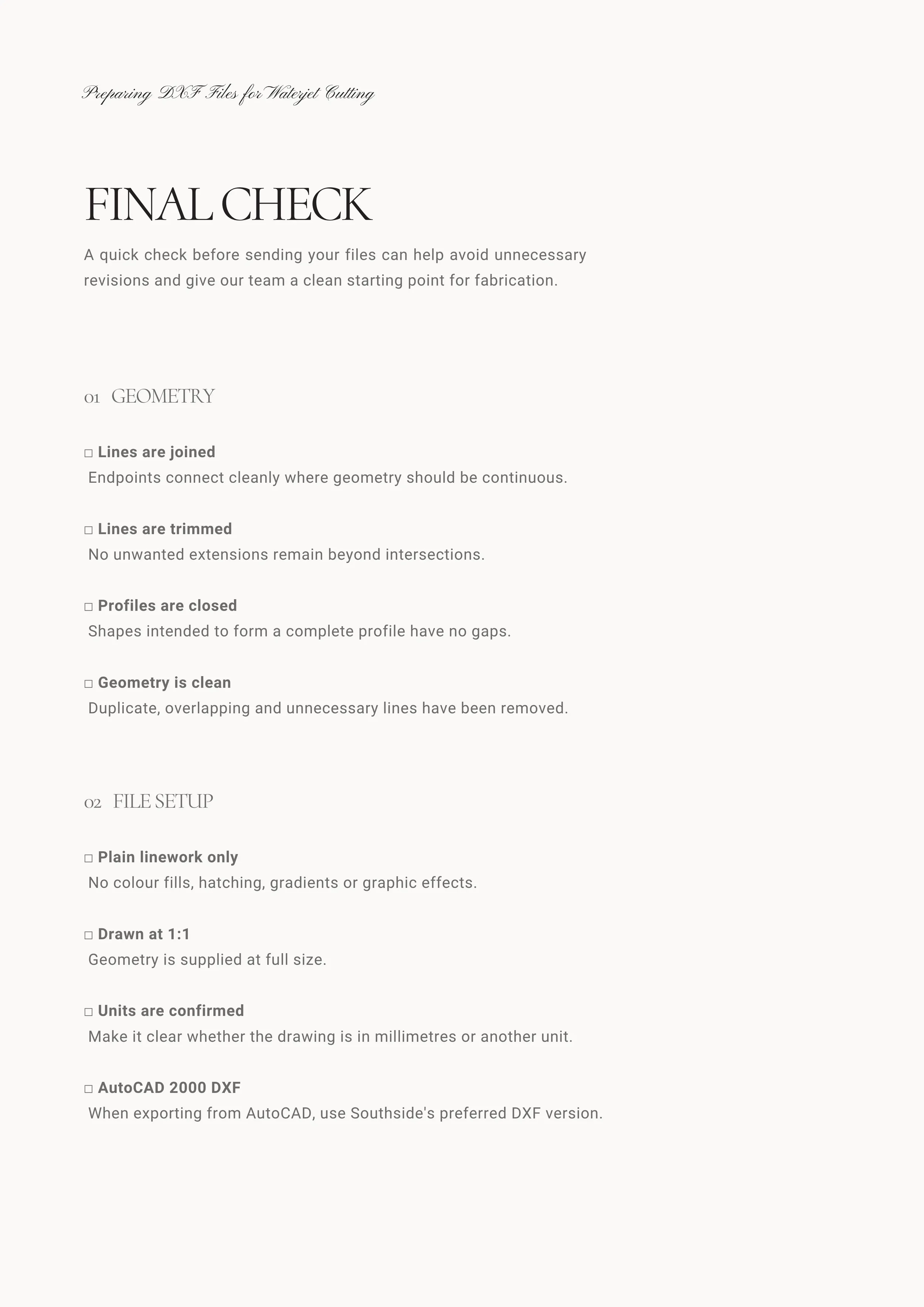

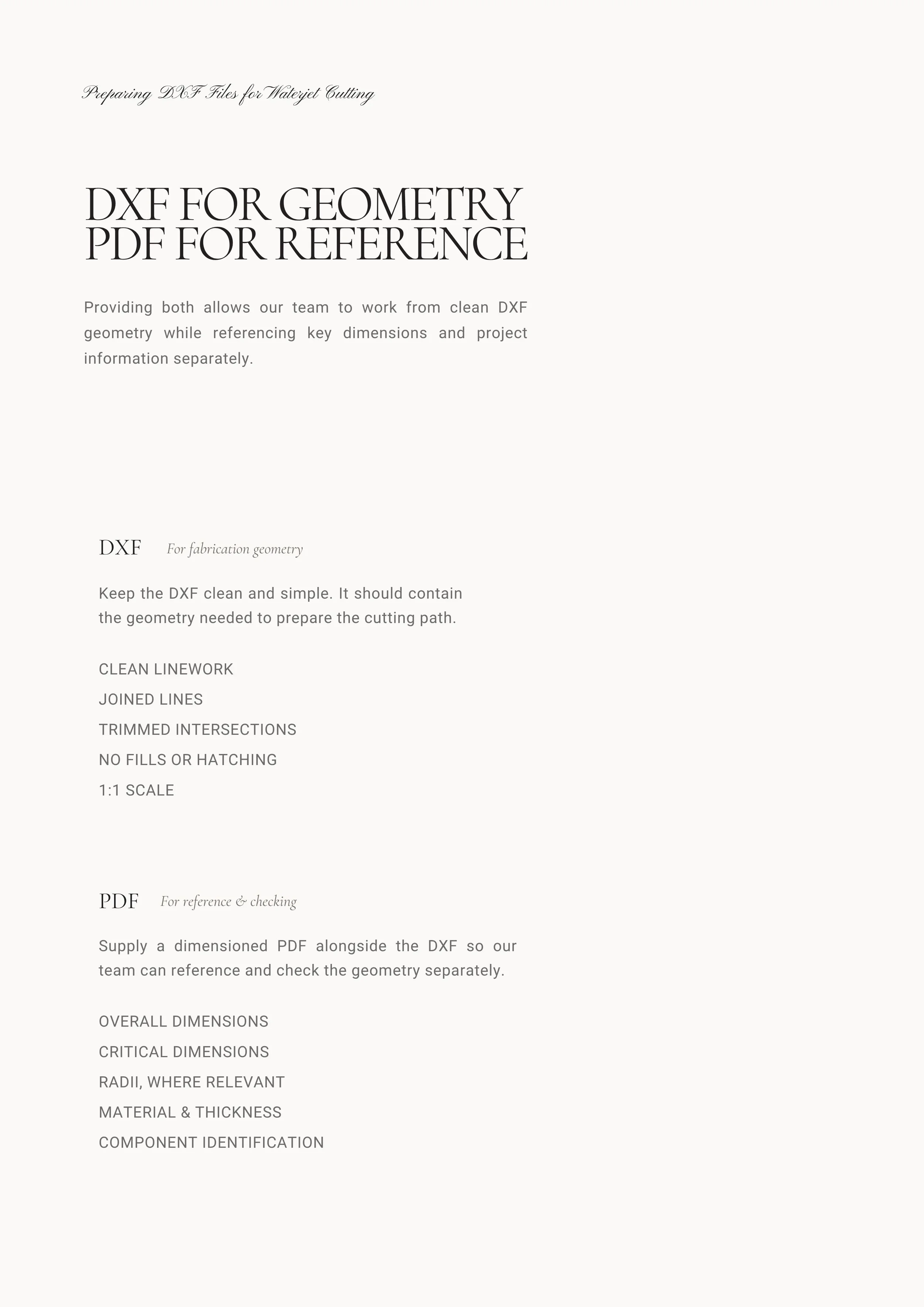

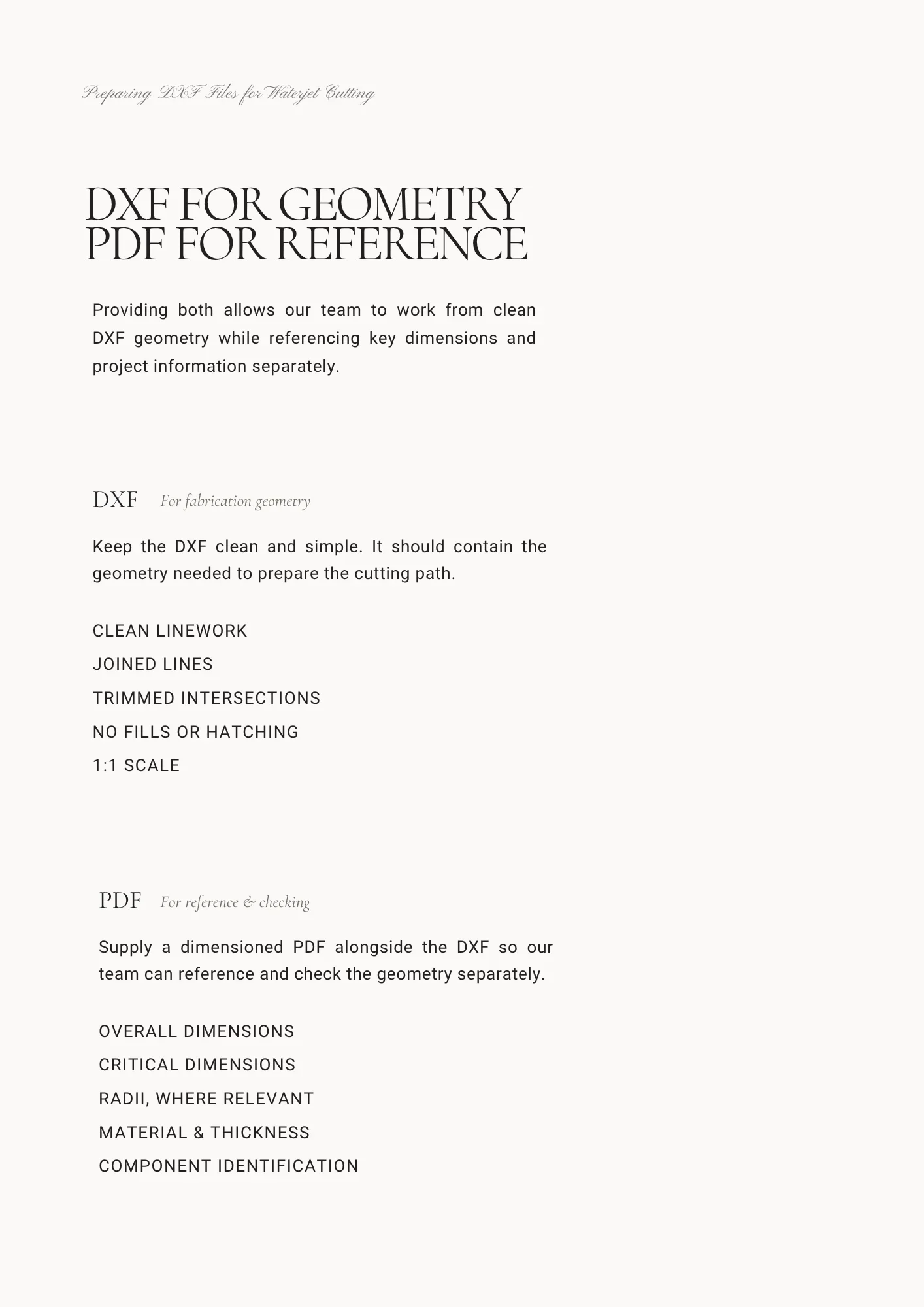

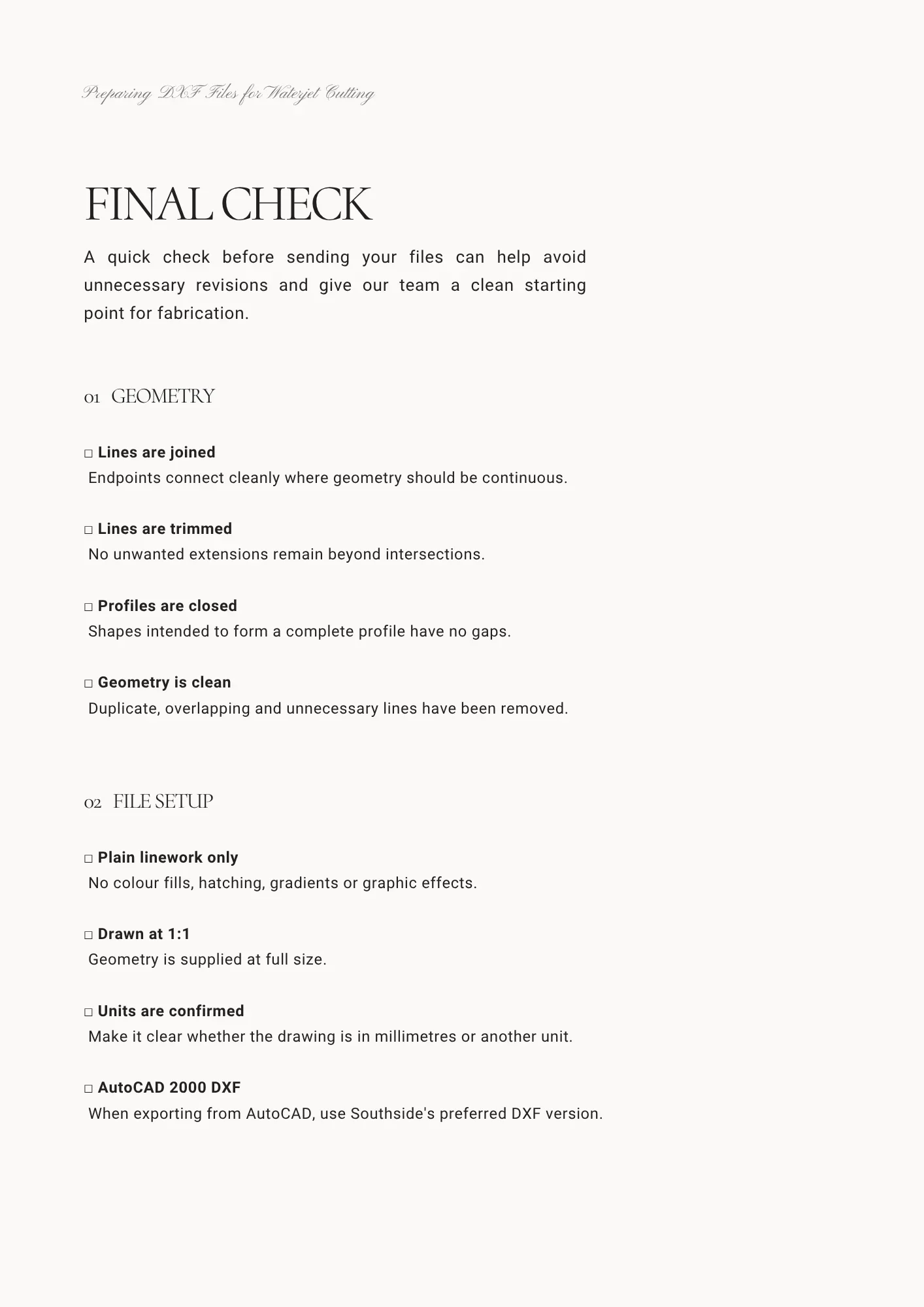

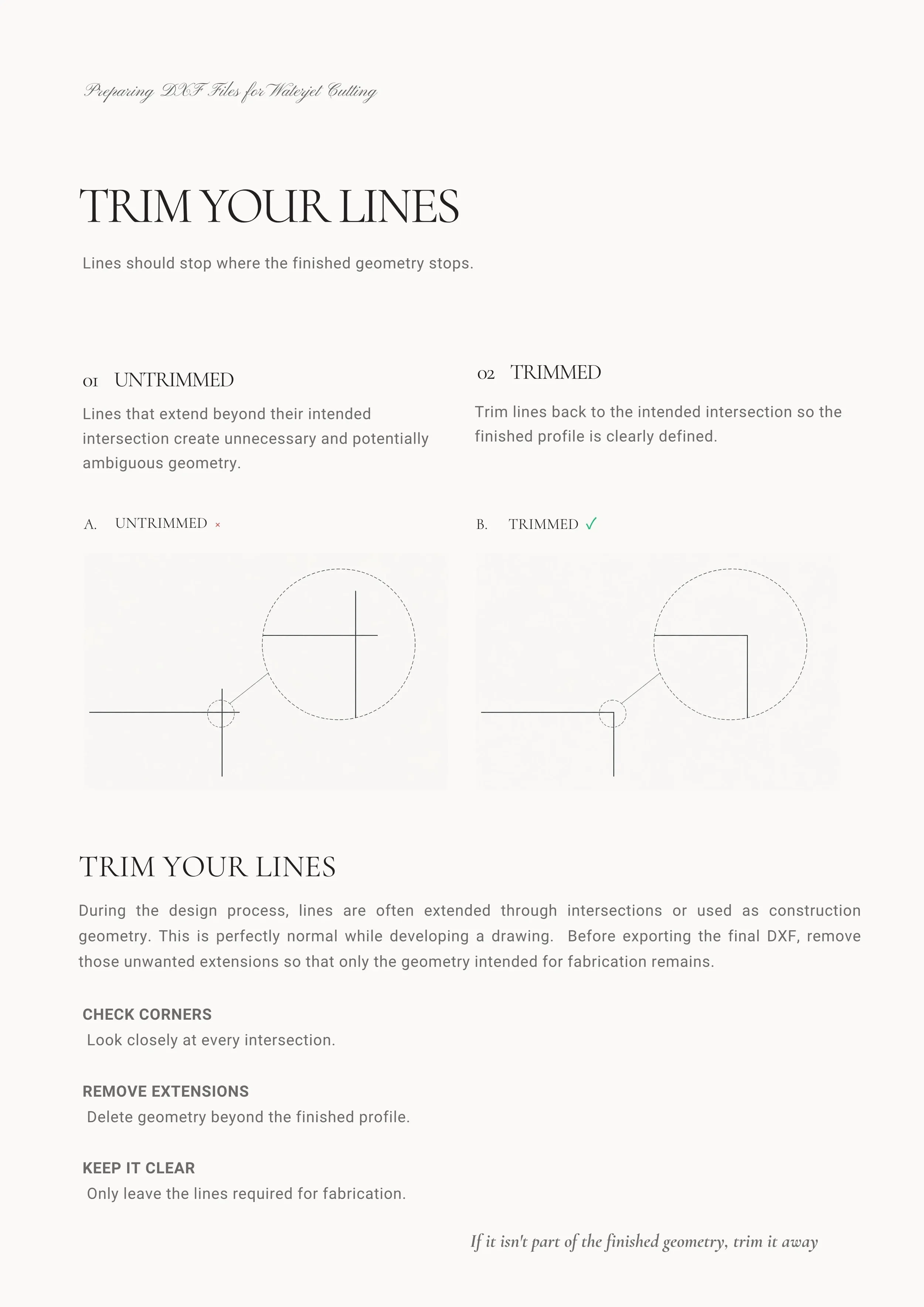

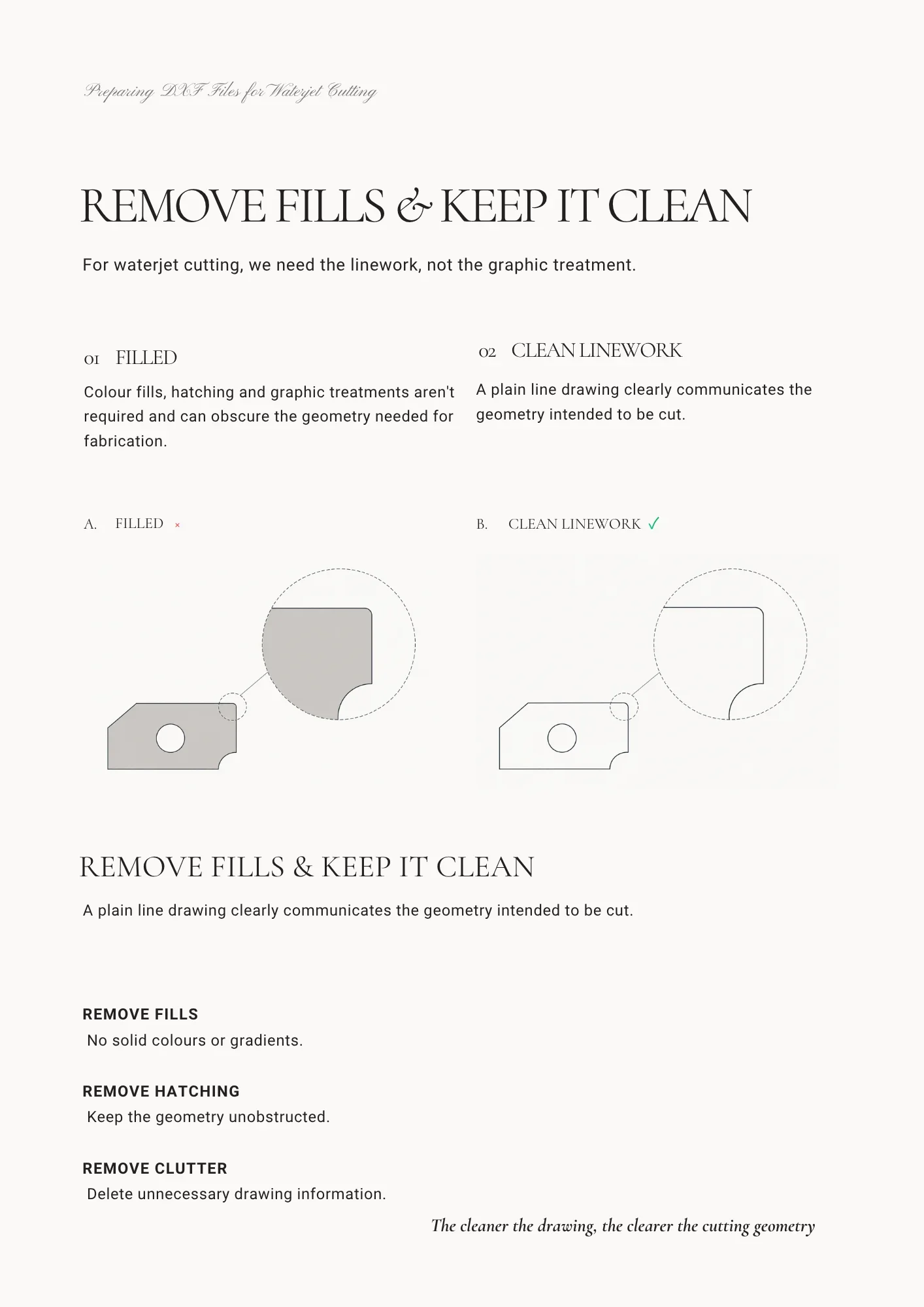

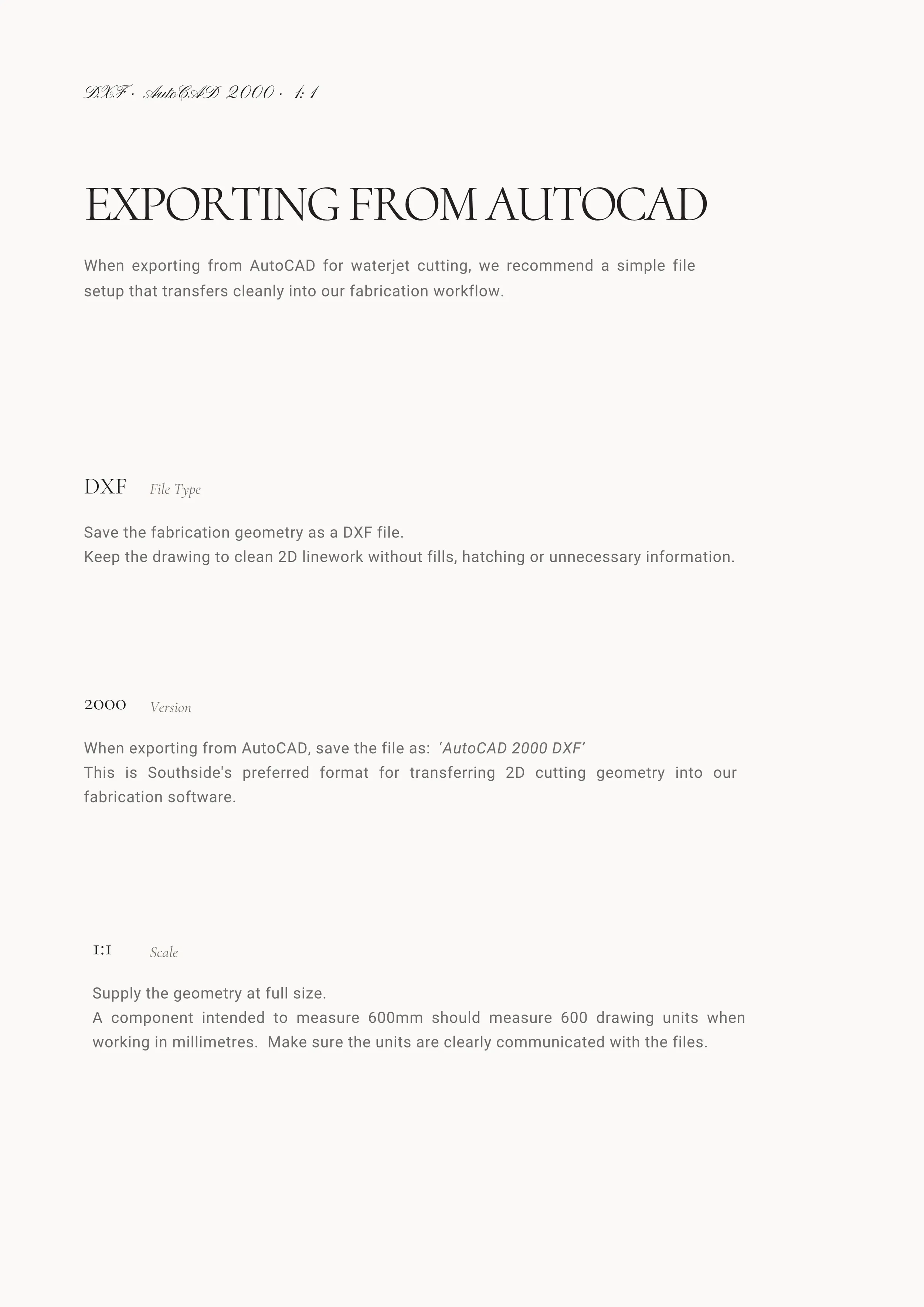

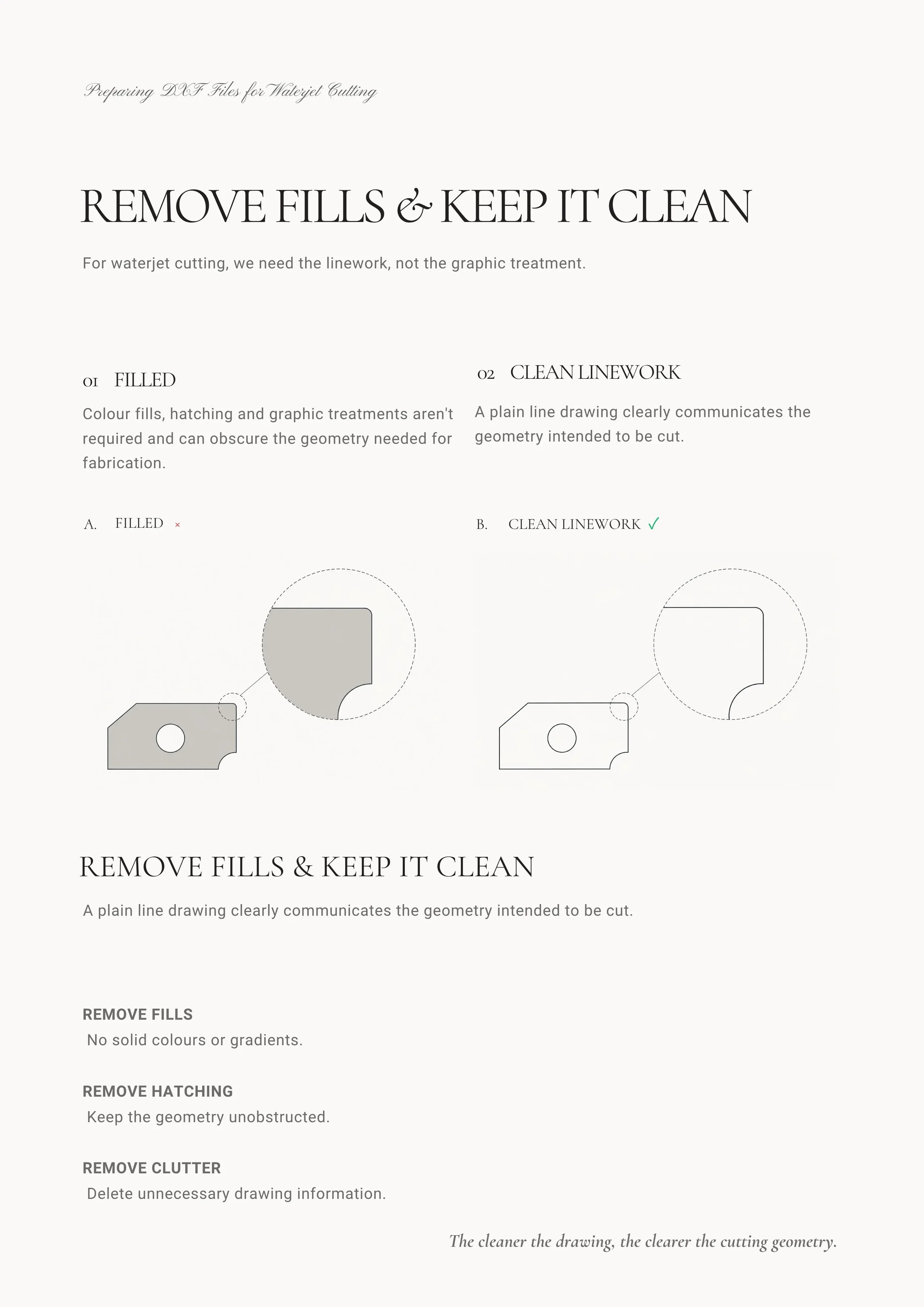

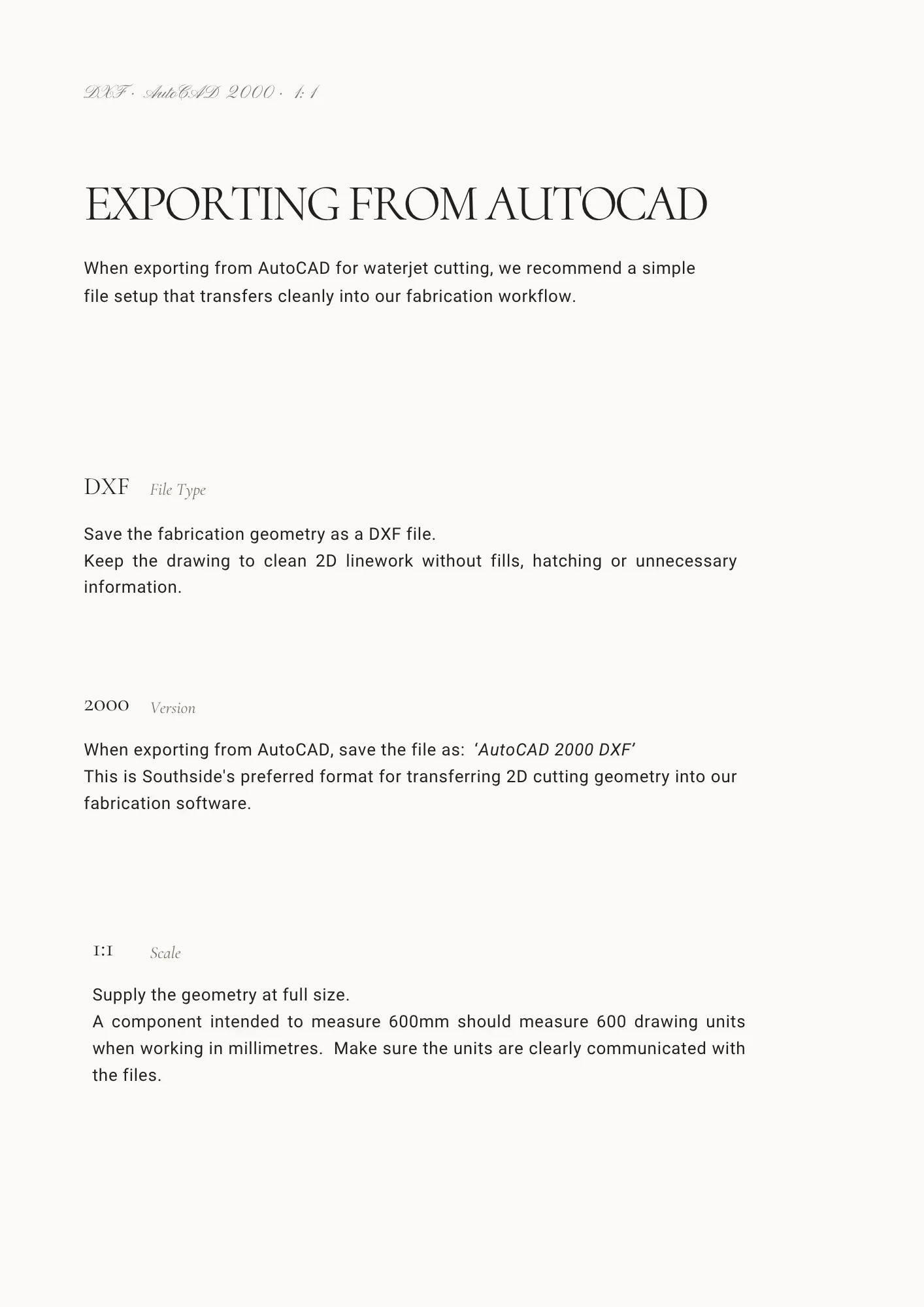

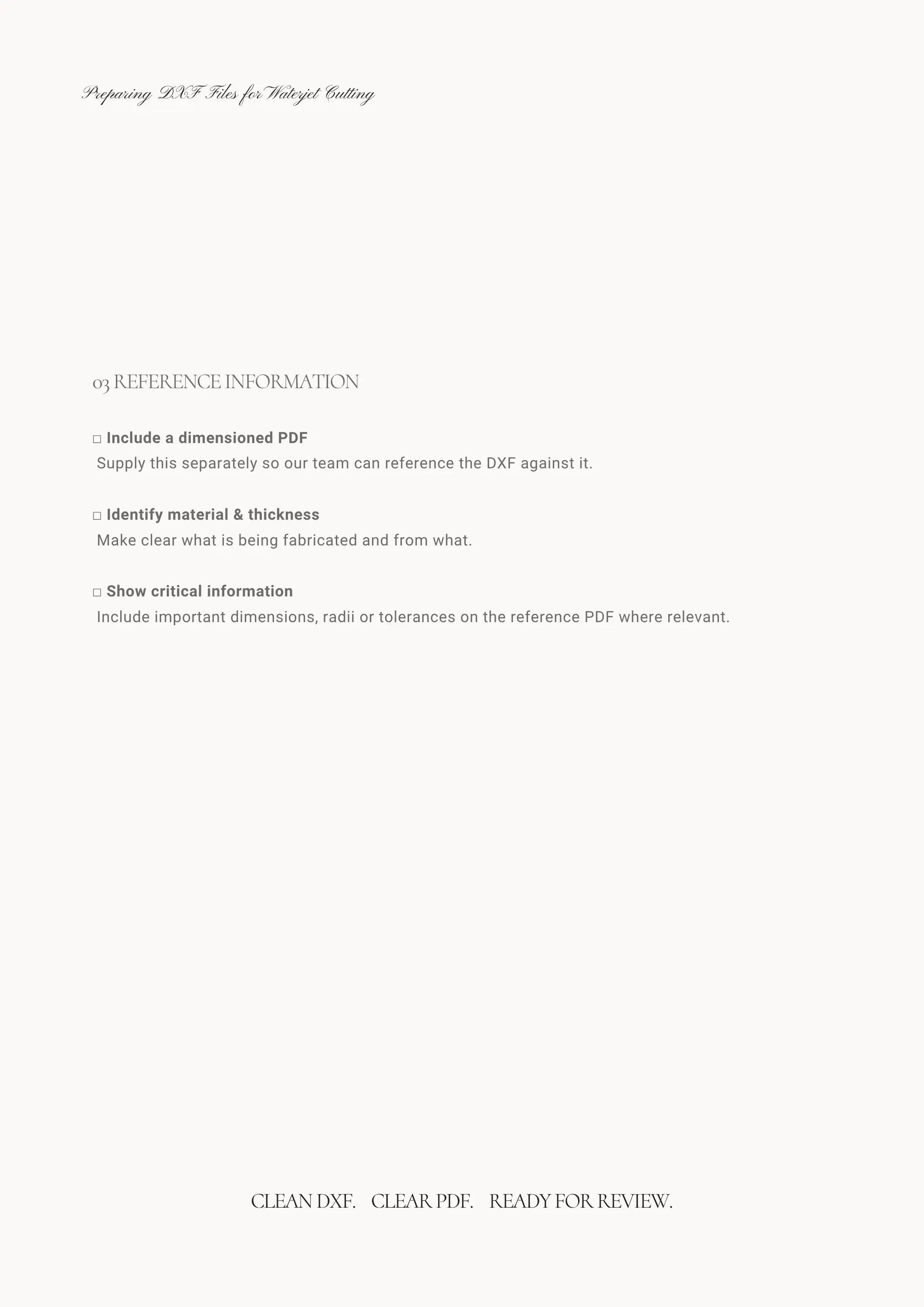

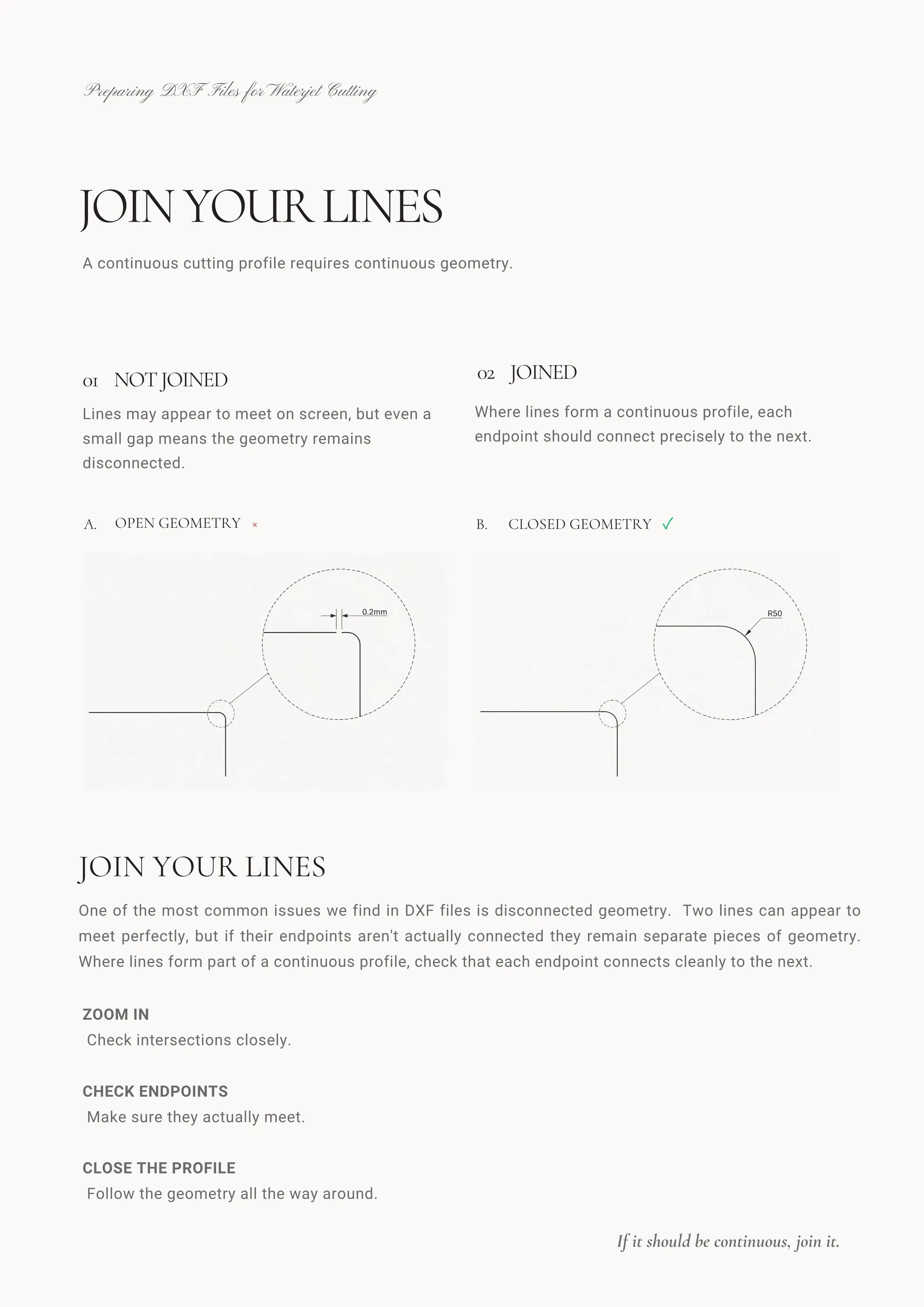

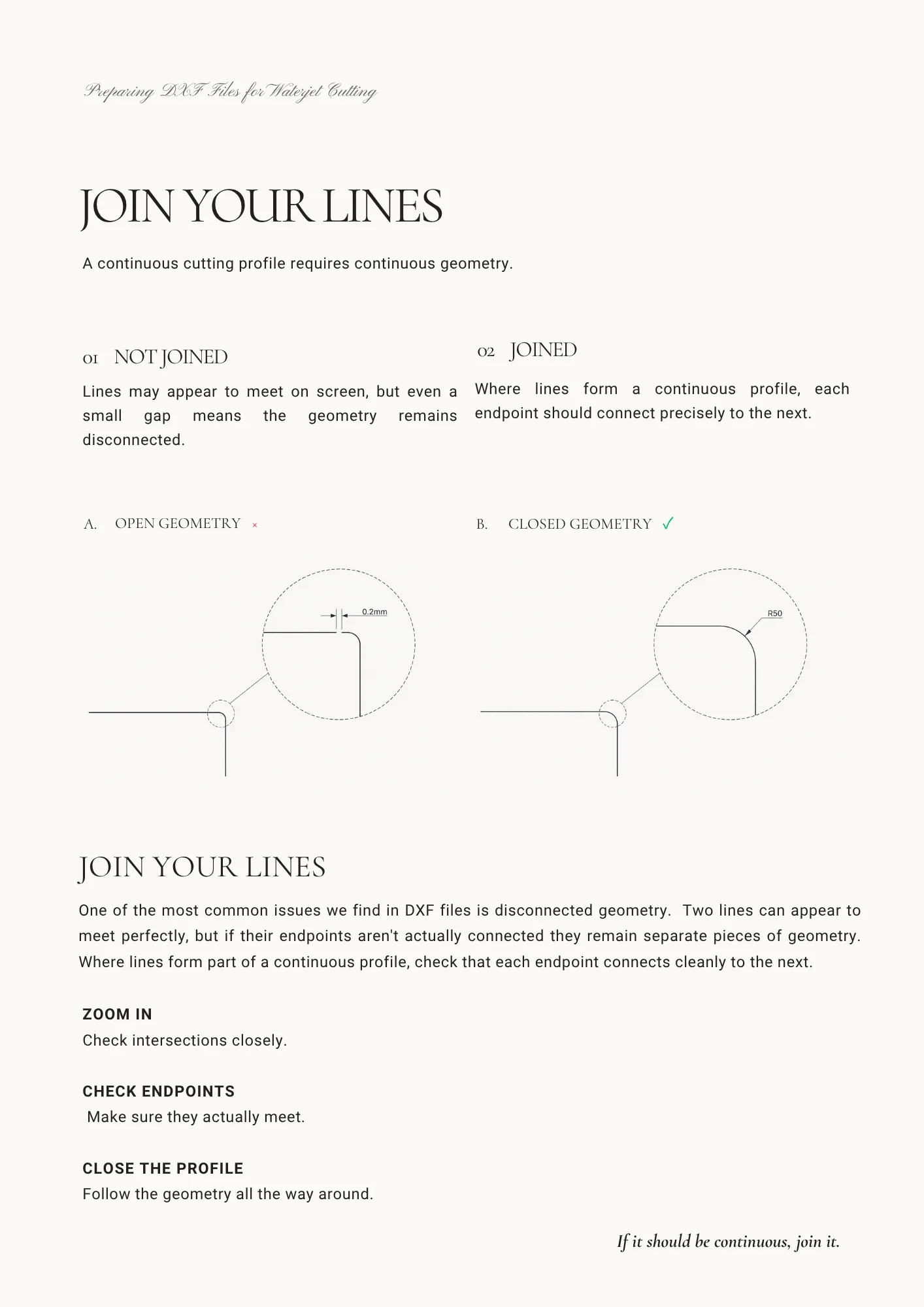

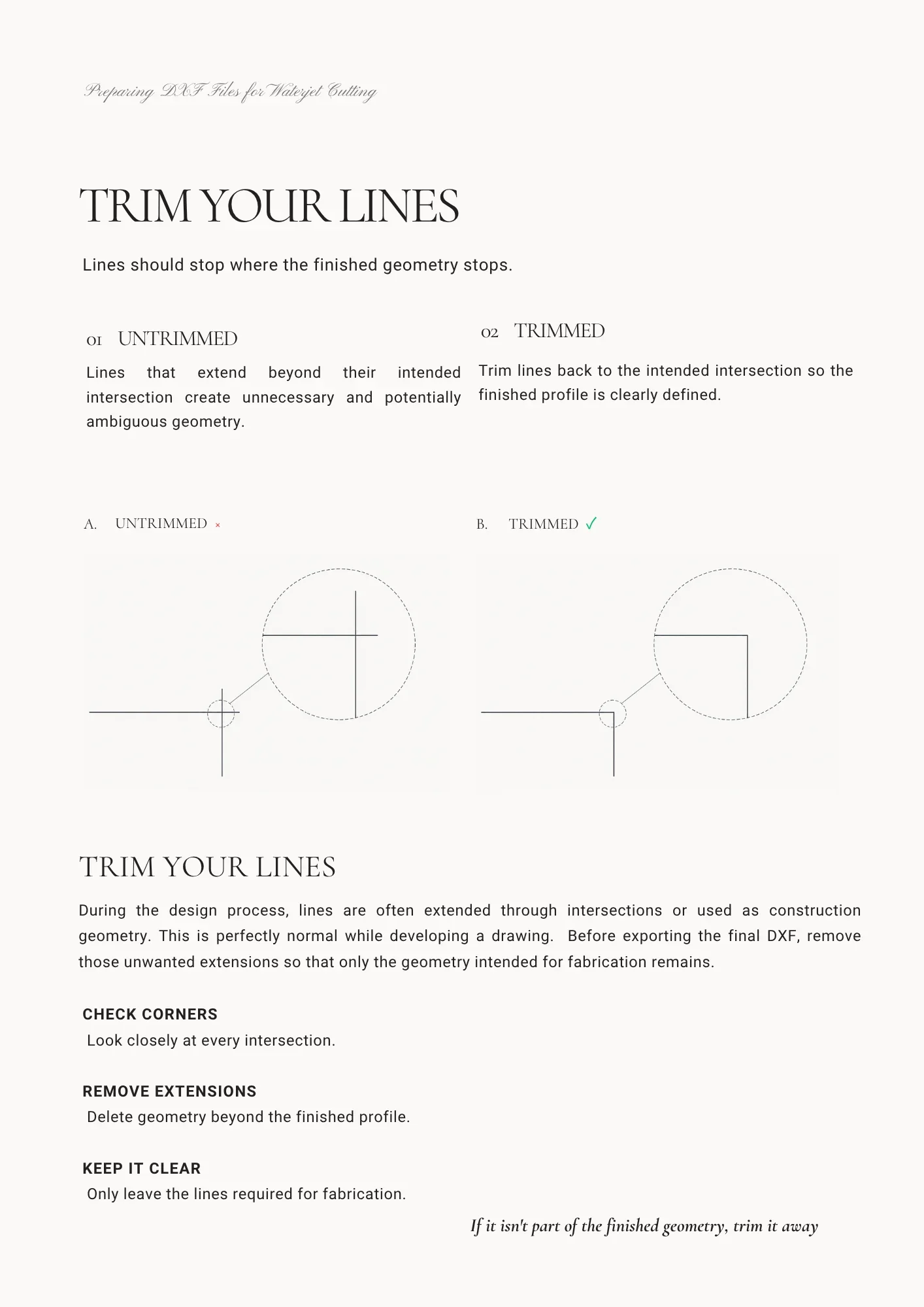

This guide covers the key considerations when preparing fabrication-ready CAD, including joined and trimmed geometry, clean linework, file setup and the reference information to supply alongside your DXF.
